Description
Size Width ︰ 68.5 mm
Depth ︰ 17 mm
Height ︰ 56 mm
Net Weight 76.5 g ± 1 g
Wavelength Range 380 ~ 780 nm
Illuminance Range ※Measurable : 20 ~ 200,000 lux
※Reliable Chromaticity : 200~200,000 lux
Output wavelength pitch 1 nm
Optical Resolution (FWHM) 8 nm
Repeatability x, y ︰＜ 0.001
Accuracy
(@ 1,000 lux Standard Light Source) x, y ：± 0.002
Illuminance：± 3 %
CCT ：± 2 %
Integration Time 6 ms ~ 16 s
Language
(SGM Plus) Traditional Chinese,
Simplified Chinese,
English, German
Language
(SGM) Traditional Chinese,
Simplified Chinese,
English,
Japanese,
French,
German,
Russian,
Italian,
Turkish,
Spanish,
Suomi
Measurement Mode Single,
Multiple,
Continuous
Subtract Background
Measurement Capability CCT
Duv
CIE 1931
CIE 1976
Spectrum
C78.377-2008
IEC-SDCM
CRI (Ra) (R1-R8)
CRI (Re) (R1-R15)
R1 ～ R15
CQS
TLCI (Qa)
Gamut Area Index (GAI)
Illuminance
Foot Candle
PPFD
Peak Wavelength (λp)
Dominant Wavelength (λD)
Purity
SP ratio
>>>More Applications
‧Transmittance

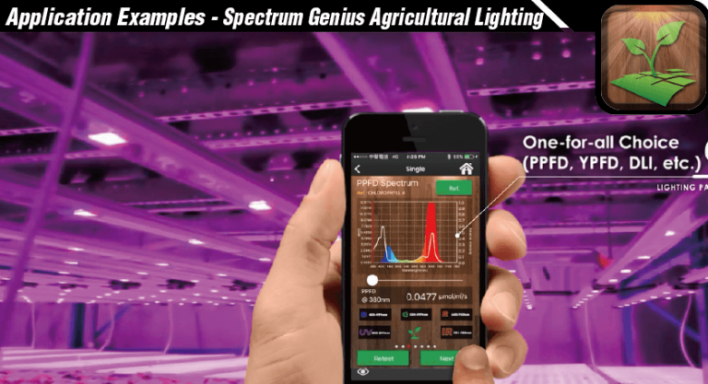

‧Agricultural Lighting
‧Studio
Key Features Automatically Record Temperature &
Photograph
Note
Data Filter
Auto Connection
Auto Dark Calibration
Data Comparison
WiFi Transfer
GPS Orientation
Social Media Integration
Additional function 1. TM-30-15 (Rf, Rg & Diagram)：FREE (iOS/Android)
APPs：SGM
2. Smart Pass (Smart Pass)：20 USD
(iOS/Android IAP)
APPs：SGM/SGAL/SGS
※ Users can get it for Free just by Emailing your records to at least 3 users.
Operating Temperature/Humidity 0 ~ 35 °C, relative humidity under 80% with no condensation
Storage Temperature/ Humidity Range -10 ~ 45 °C,
relative humidity of 85% or less (@ 35 °C) with no condensation
APP SGM Plus
SGM
SGT
SGAL
SGS
SGS-Tablet
Spectrum Genius PC_Standard FREE
Spectrum Genius
PC_Advanced 500 USD
